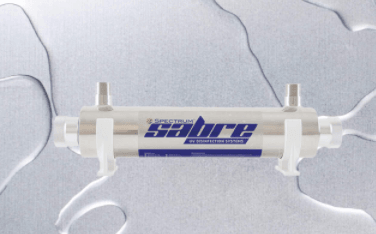

Pentair SUV-S-4-1/4 - UV Disinfection System

Product Code: SUV-S-4-1/4

Availability:In stock

$322.00 $257.00 257.00

The Pentair SUV-S range is effective against contaminants such as bacteria, viruses, mould, spores, algae and other microorganisms preventing growth and reproduction. If left untreated, these organisms will remain in water, producing a bio-film coating throughout the system; harbouring more bacteria and making the water less safe to drink



Key Product Features

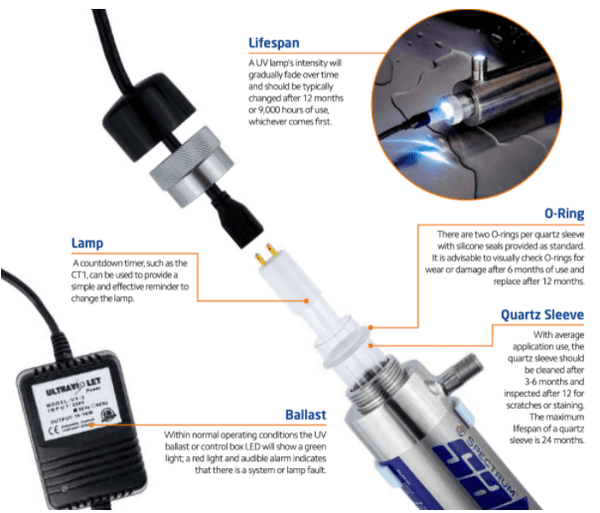

  • Ability to inactivate bacteria by destroying the DNA of harmful Organisms
  • Power supply with LED status indicators
  • UV Lamp that floods the chamber with UV light
  • Reactor chamber with 304 stainless steel
  • Mounting Kit
  • Complete range of sizes to cater for requirements



Product Code
Flow (IPM) Port Size (") Lamp (W)
SUV-S-4-1/4 3.8 1/4 10 X 1
SUV-S-8-1/2 7.6 1/2 14 X 1
SUV-S-30-3/4 30 3/4 29 X 1
SUV-S-57-1 76 1 65 X 1



Flow Rate @ 30 mJ/cm²: 3.8 (0.24)

Housing: EFHS-PK-1-10-1/4

Port Size: 1/4"

Cartridge: AMS-5-97/8



Specification



Operating Temperature Range: 2-40°C

Operating Pressure Range: 0.7-6.8 bar

Voltage: 100-240V

Frequency: 50-60 Hz

Lamp Life: 9,000 hours



Materials of construction:



Reactor Chamber: 304 Stainless Steel

Sleeve: Quartz

O-Rings: Silicone Viton available

Nuts: Aluminium
