Heidelberg SBG Cylinder machine 56 x 77cm

Product Code:

Availability:In stock

£58,000.00 58,000.00
Please contact us for availability and a full specification

T: 01782 943435
E: Sales@mdspareparts.com

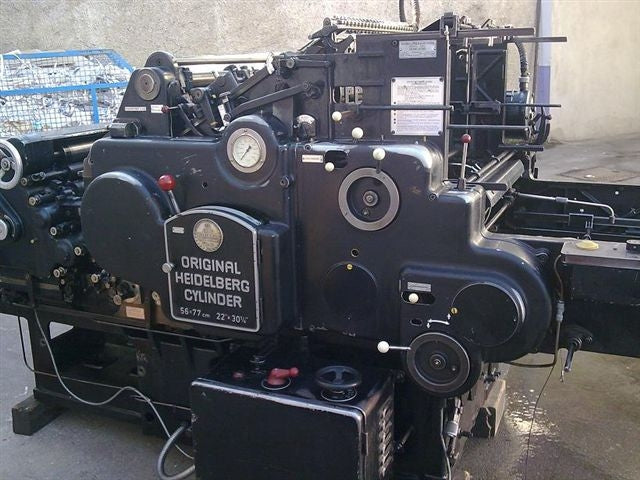

Heidelberg SBG cylinder machine
Cylinder foil blocking machine + cutting & creasing.


  • 2 foil pull unit
  • Can be viewed in operation
  • Available immediately
  • 4 zone honeycomb heater plate
  • Purpose built electrical cabinet



  • The base unit has been totally rebuilt by experienced print engineers, ensuring you receive a top quality hot foil/cutting and creasing press.
  • Drive motor & drive control system all CE certified
  • Removable heater bed to allow for cutting and creasing
  • Guarding, four door opening, providing all round vision
  • Guard master switches providing full CE & H&S guard protection



  • New style foil pull through unit
  • 2 foil draw rollers
  • Foil tension bar & collars for up to 90mm rolls
  • High resolution 0.1mm servo motors, reduces foil waste
  • Complex foil advance programme
  • Spring loaded foil tension bars providing speedy foil changes



  • Unique 4 zone design, manufactured specifically for the Heidelberg SBB
  • 1 thermocouple per zone, providing total control of heat distribution
  • High grade material machined and ground to a high quality
  • 4 zone bed plate (provides excellent heat distribution)
  • Bed height set for 6.35mm/ ¼” dies



  • 7” touchscreen control set up; 2 foil pull drives + bed zone temperatures
  • Brand new electrical main drive system
  • Servo motor- foil tension control accurate to 1mm
  • 100 job memory in PLC
  • Push button emergency stop buttons located around the machine



The machine includes:

  • Machine documentation
  • Operators manual
  • Parts manual
  • Electrical wiring diagram



We can provide consumables needed for production which includes:

  • Silver, gold, coloured and holographic foil
  • Die fixing system ( both toggle and bunter post) and make ready materials



The machine dimensions are:

  • Length
  • The electrical supply requirements is: 3 phase 50Hz380-415/440v/14Kw
  • Air supply not required
  • We can install and commission the machine anywhere in the world using our own skilled engineers. Please ask for a price.



This machine is offered with 3 month parts warranty, subject to our terms and conditions, which are available on request.



These details have been prepared in good faith but do not form any contract. It is for the purchaser to inspect the machine and satisfy themselves as the suitability and condition of the machine prior to entering into any contract.
